Relation of Flux with Reliability, Risks, and Resolution in Electronic Assemblies
In the world of electronic assembly, flux is the silent partner of solder. Without it, the high-performance gadgets we rely on daily would likely fall apart. However, flux is a double-edged sword; while it’s necessary for creating a strong bond, its residues can become a ticking time bomb for device reliability.
Understanding how to manage these residues is the difference between a product that lasts a decade and one that fails in a month.
What is Flux on Electronic Assemblies?
At its core, flux is a chemical cleaning agent used before and during the soldering process. Metals like copper naturally develop oxidation layers when exposed to air. If you try to solder directly onto oxidized metal, the solder won’t "wet" (stick) properly, leading to weak or "cold" joints.
The three main roles of flux are:
-
Removing Oxidation: It chemically dissolve and remove oxidation from the surfaces of the PCB pads, component leads, and the individual solder alloy particles themselves.
-
Preventing Re-oxidation: During the reflow process, high temperatures accelerate oxidation. Flux forms a protective barrier that seals out oxygen, keeping surfaces clean until the solder melts.
-
Promotion of Wetting: Flux reduces the surface tension of molten solder, allowing it to flow and "wet" the metal surfaces evenly rather than beading up.
The Impact on ReliabilityWhy Cleanliness Matters?

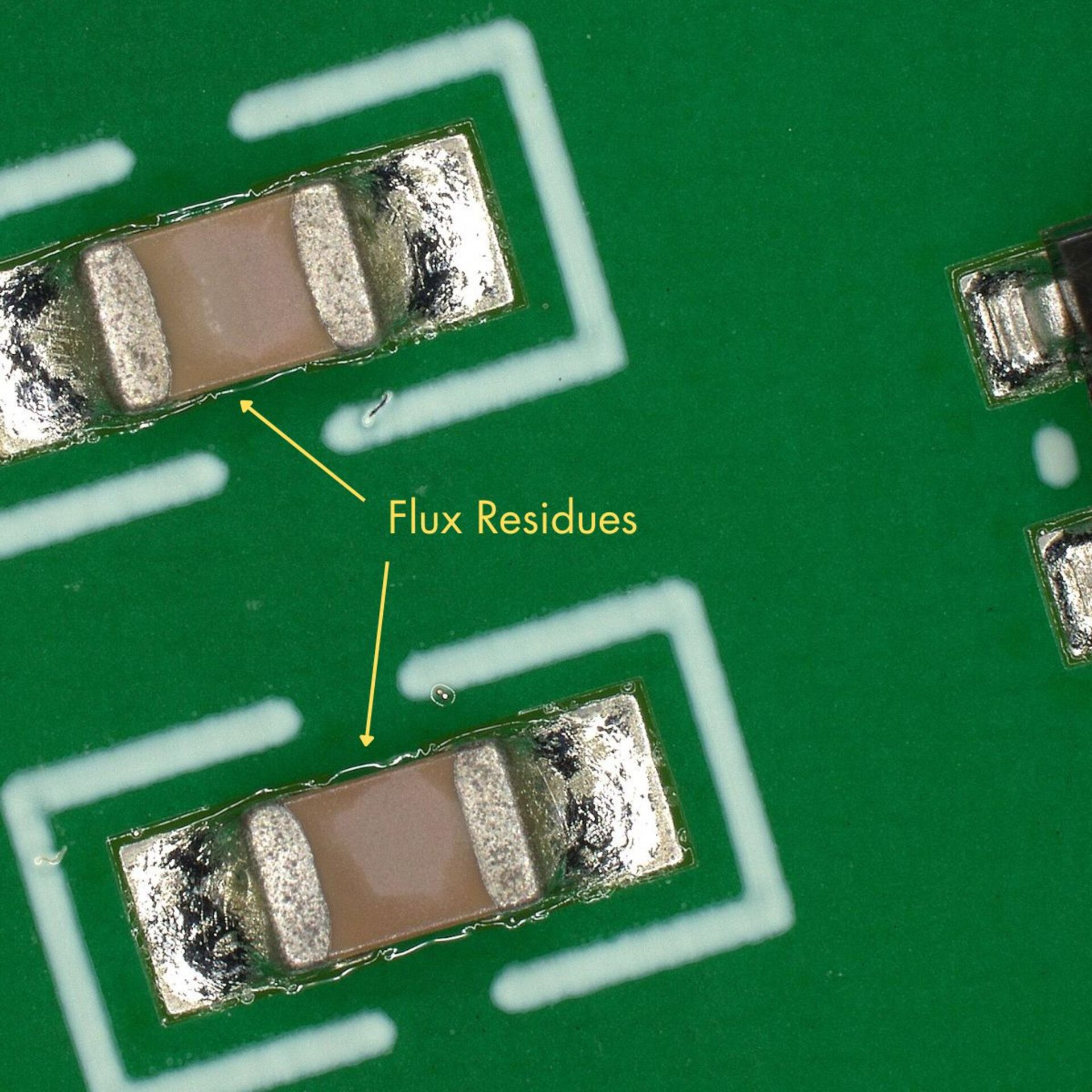

Once the soldering is finished, the flux has done its job. However, the leftovers—known as flux residues—can be problematic. Depending on the type of flux used (Rosin-based, Water Soluble, or "No-Clean"), these residues can impact reliability in several ways:
-

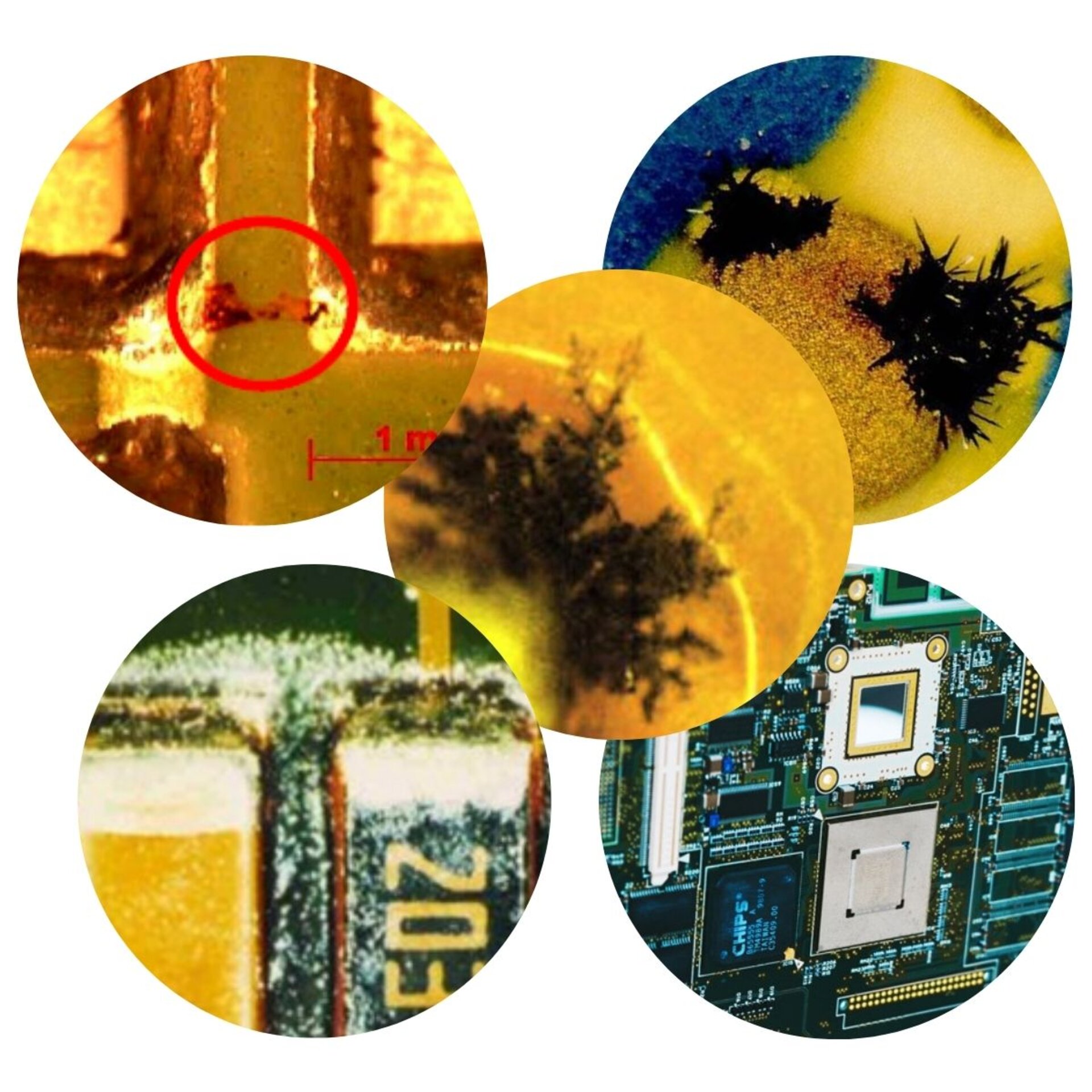

Electrochemical Migration (ECM): Some fluxes are acidic or contain halides. In the presence of moisture, these can create "dendrites"—tiny, microscopic metal whiskers that grow between conductors, eventually causing a short circuit.
-
Corrosion: Over time, active flux residues can eat away at copper traces and delicate bond wires, leading to open circuits.
-
Adhesion Issues: If you plan to apply a conformal coating to protect the board, flux residues can prevent the coating from sticking, leading to delamination and "pockets" where moisture can collect.
-
Cosmetic and Inspection Hurdles: Residues can hide defects like solder balls or cracks, making Automated Optical Inspection (AOI) less effective.
Cleaning Flux Residues Effectively
Cleaning isn't just about "washing" the board; it’s about a controlled chemical and mechanical process. The industry has moved far beyond simple alcohol wipes.
-
Chemistry Selection: You need a cleaning agent that can dissolve the specific resin and activator in your flux without damaging the delicate components or the PCB substrate.
-
Agitation: Whether using Ultrasonic cleaning, Spray-in-air systems, or Dishwasher-style batch cleaners, the fluid must reach underneath low-standoff components (like BGAs and QFNs).
-
Rinsing and Drying: Ensuring no cleaning chemistry is left behind is just as vital as removing the flux itself.
Precision Cleaning with Zestron
When it comes to high-reliability electronics—such as those used in automotive, aerospace, or medical industries—"good enough" cleaning isn't an option. This is where ZESTRON steps in as a global leader in high-precision cleaning solutions.
For manufacturers in the Southeast Asian region, Zestron South Asia (stationed in Penang, Malaysia) serves as a vital hub for technical expertise and advanced cleaning chemistry.
Why Zestron?
-
Cleaning Technology: ZESTRON’s cleaning technology (MPC, FAST, HYDRON, ZESTRON) develop superior cleaning chemicals suitable for various applications, meeting the highest electronics cleaning requirements.
-
Technical Support: Through their technical centers (including the facility in Malaysia), Zestron offers cleaning trials, allowing manufacturers to test their specific fouled boards to find the perfect cleaning profile.
-
Compliance & Safety: Their aqueous-based cleaners are designed to meet strict environmental regulations while ensuring the safety of your operators.
By integrating Zestron’s cleaning solutions into your assembly line, you aren't just removing "dirt"—you are engineering long-term reliability into your product.
For more information on optimizing your cleaning process or to schedule a cleaning trial, talk to us!
