The Roles of Cleaning Chemicals
Cleaning is the primary pillar of long-term component reliability. Advanced cleaning process prevents electrochemical disasters and is the only way to guarantee a zero-defect product.
What is the Role of the Cleaning Chemicals?
Modern electronics manufacturing is facing a double-edged sword: components are getting smaller, stand-off heights are shrinking, and performance demands are skyrocketing. In high-reliability sectors like automotive, aerospace, and medical electronics, a single microscopic particle or trace chemical residue can cause catastrophic field failure.
While many view board cleaning as a final "cosmetic" step, cleaning is actually a primary pillar of long-term component reliability. Advanced cleaning process prevents electrochemical disasters and is the only way to guarantee a zero-defect product.
What Happens Without Precision Cleaning?
When raw flux residues, handling oils, or atmospheric pollutants are left on a Printed Circuit Board Assembly (PCBA), they create a ticking time bomb.
Under operational conditions involving voltage differentials and ambient moisture, primary reliability threats like Electrochemical Migration (ECM) & Dendritic Growth, Leakage Currents and Conformal Coating Delamination emerge.

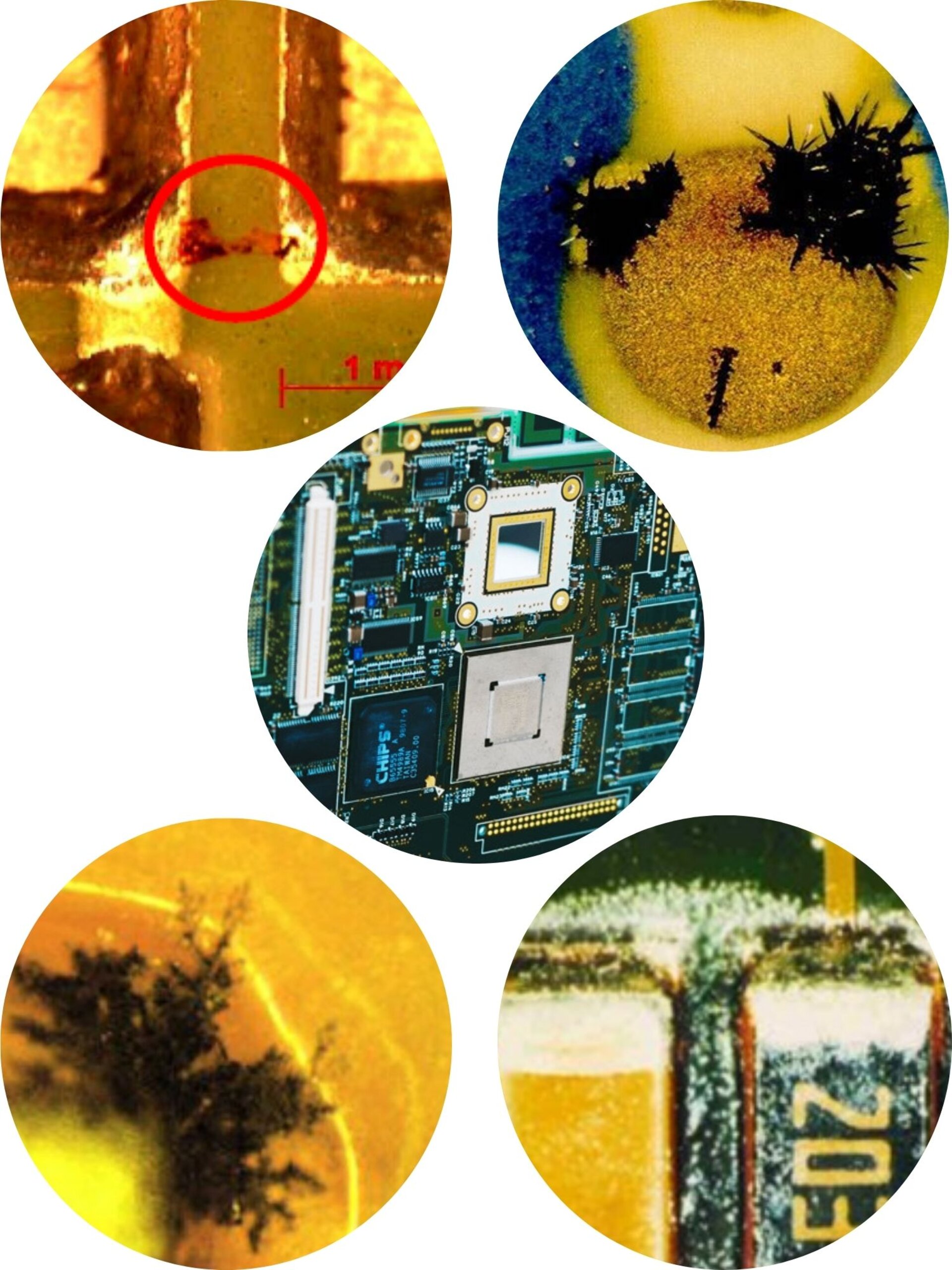

1) Electrochemical Migration (ECM) & Dendritic Growth: Ionic residues dissolve in trace moisture, creating an electrolyte pathway. Under an electrical bias, metal ions migrate between conductors, growing microscopic "dendrites" (metal whiskers) that cause permanent short circuits.
2) Leakage Currents: Even before a full short occurs, trapped conductive residues create parasitic leakage paths. This degrades signal integrity, drains batteries rapidly, and causes erratic behavior in high-frequency circuits.
3) Conformal Coating Delamination: If a board is coated without being chemically pristine, poor surface wetting occurs. The coating will lift, trap moisture underneath, and accelerate the very corrosion it was meant to prevent.
cleaning misconceptionsWhy Normal Liquid Cleaning Isn't Enough?
A common misconception is that any liquid can flush away production residues. However, modern lead-free and no-clean fluxes are chemically engineered to withstand high reflow temperatures, leaving behind highly complex, polymerized synthetic resins and localized activators.
1) The Power of Polar & Non-Polar Balance: Effective cleaning chemicals must feature a balanced molecular design. They need to dissolve both non-polar contaminants (like rosins and oils) and polar contaminants (like ionic activators and salts).
2) The Challenge of Low-Standoff Heights: Components like QFNs, Flip-Chips, and microBGAs sit mere micrometres off the board substrate. Standard solvents lack the low surface tension required to penetrate these tight gaps, dissolve the trapped flux, and carry it back out.
3) Material Compatibility: A cleaning chemical must be aggressive toward contaminants but entirely benign toward sensitive component materials, plastics, inks, substrate laminates, and solder joints.
The effect of cleaningHow Advanced Chemistry Safeguards the SMT Line?
Implementing a purpose-formulated cleaning agent (such as pH-neutral, surfactant-free, or MPC® technology) acts as an insurance policy for your manufacturing line by:
1. Preventing "Solder Balling" and Graphed Defects during Reflow

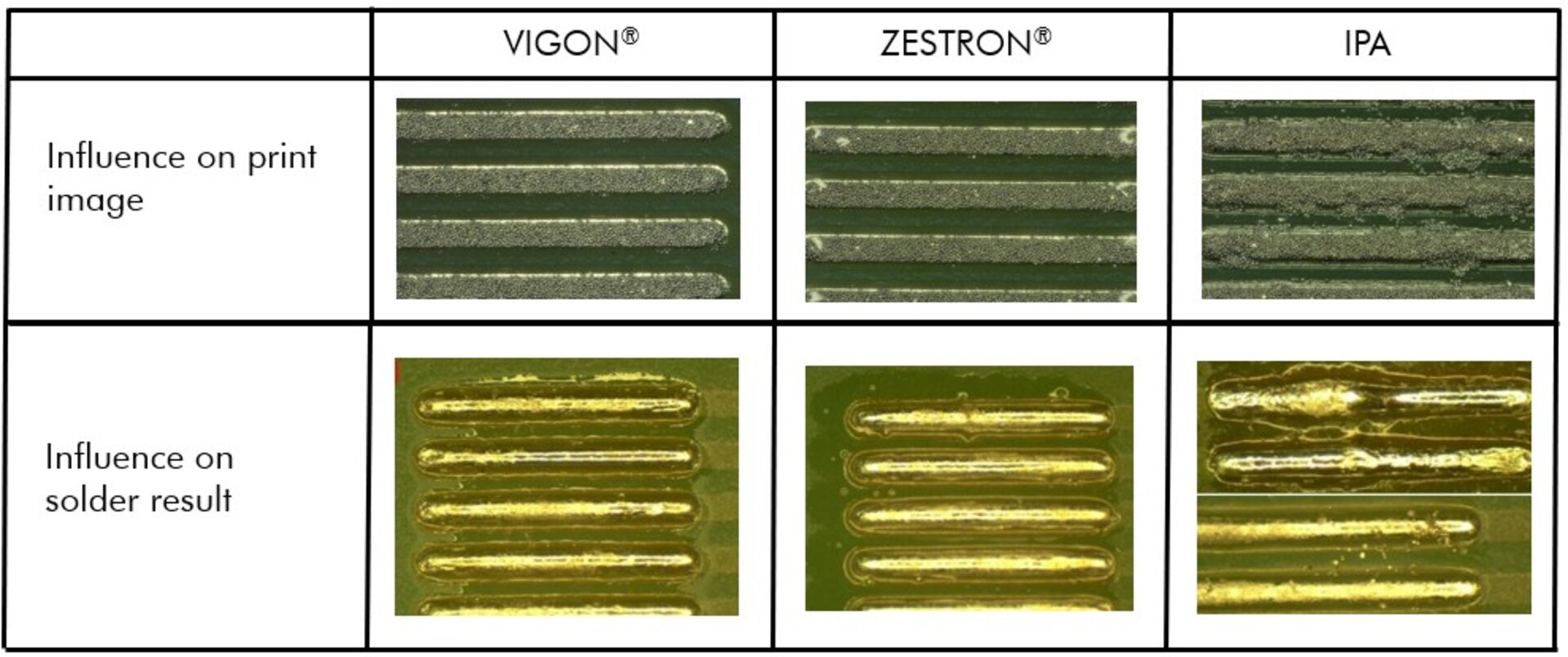

While cleaning is traditionally seen as a post-reflow process, the cleaning of the SMT stencil before printing is equally critical to component reliability. Advanced stencil cleaning chemicals do more than just wipe away solder paste; they completely remove microscopic lead-free solder particles and sticky flux binders from the stencil apertures.
If a generic solvent is used, it often leaves a thin film of flux inside the aperture. On the next print cycle, this causes "solder paste release" issues, leading to insufficient solder joints or misprinted solder balls that can bridge component leads later.
2. Maintaining Surface Energy for Underfill and Encapsulation
For ruggedised electronics (like automotive under-hood sensors or smartphone mainboards), components are often underfilled with epoxy resins to resist mechanical shock and vibration.
High-performance cleaning chemicals do not just remove visible flux; they alter the surface energy of the PCB substrate and the component body. A properly engineered chemical leaves a pristine, high-energy surface. High surface energy then allows underfill materials to flow smoothly via capillary action completely underneath the component without leaving air voids. Voids trap moisture, which expands during thermal cycling and cracks the solder joints.
3. Mitigation of Electrochemical Risks from Lead-Free OA
(Organic Acid) Fluxes

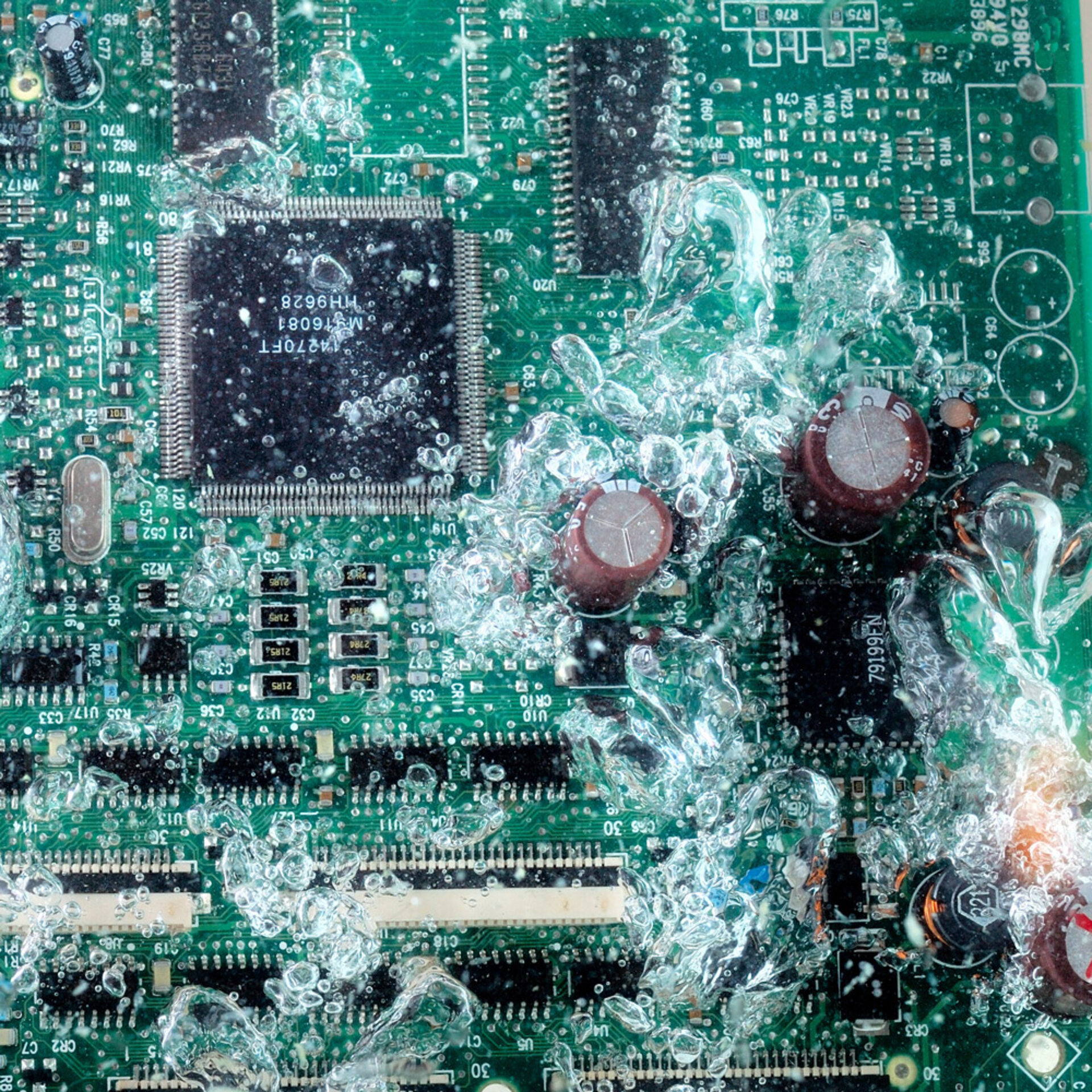

Many manufacturers use Water-Soluble / Organic Acid (OA) fluxes because they are highly active and easy to clean with water alone. However, this is a major reliability trap.
Pure water has high surface tension and struggles to rinse out highly acidic OA flux residues trapped under tight-clearance components. Specialized cleaning chemistries contain neutralizing agents that break down these stubborn organic acids. While OA flux residues are highly corrosive and hygroscopic, they actively absorb moisture from the air. If even a trace amount is left under a component, it will rapidly initiate dendritic growth once the device is powered on in the field.
cleaning validationHow Do You Prove It's Clean?
Choosing the right cleaning chemical is only half the battle; maintaining and validating the process is what ensures continuous reliability. You cannot manage what you do not measure.
To bridge the gap between "visually clean" and "reliably clean," manufacturers must transition from subjective checks to objective, traceable analytical data.
The Analytical Toolkit for Reliability Validation:
1) Bath Analysis & Concentration Monitoring: Cleaning chemistry degrades as it loads up with flux. Regular bath profiling ensures the chemical concentration is always at its optimal matrix to clean effectively without leaving any residues.
2) Ion Chromatography (IC): The gold standard for reliability. Testing with water may show a board is "clean," but an IC test can detect specific organic acids hidden deep beneath the components, proving whether the cleaning chemistry successfully removed them. It extracts residues from the board and quantifies exact levels of harmful ions (like Chlorides, Bromides, and Fluorides) down to parts-per-million (ppm), ensuring compliance with IPC-WP-019.
3) FTIR (Fourier-Transform Infrared Spectroscopy) Analysis: Failed assemblies are tested to identify if the root cause of corrosion is indeed contaminants, organic matter, or flux.
4) Scanning Electron Microscopy / Energy Dispersive X-Ray (SEM/EDX): If an assembly experiences a localised failure or unidentifiable stain post-cleaning, SEM/EDX provides high-magnification imaging and elemental mapping to pinpoint exactly what chemical element caused the defect.
What’s Next?
Component reliability is completely inseparable from chemical cleanliness. Investing in high-performance cleaning chemistry is an investment in your brand’s reputation and your product’s lifespan.
