Defluxing Gone Wrong: Common Cleaning Mistakes in Production
In high-reliability electronics, defluxing is far more than a cosmetic touch-up—it is an essential reliability control process.
SURFACE CLEANLINESSSurface Treatment for Long-term Reliability
In critical industries like medical devices, aerospace and defence, automotive safety, and industrial control systems, uncleaned assembly residues are primary drivers of field failures. Leaving flux unaddressed leads to severe issues such as corrosion, electrical leakage, electrochemical migration, and premature field failure.
At ZESTRON, our engineered cleaning chemistries and technical process solutions go beyond simple surface aesthetics to ensure your electronic assemblies deliver uninterrupted performance when failure is not an option.

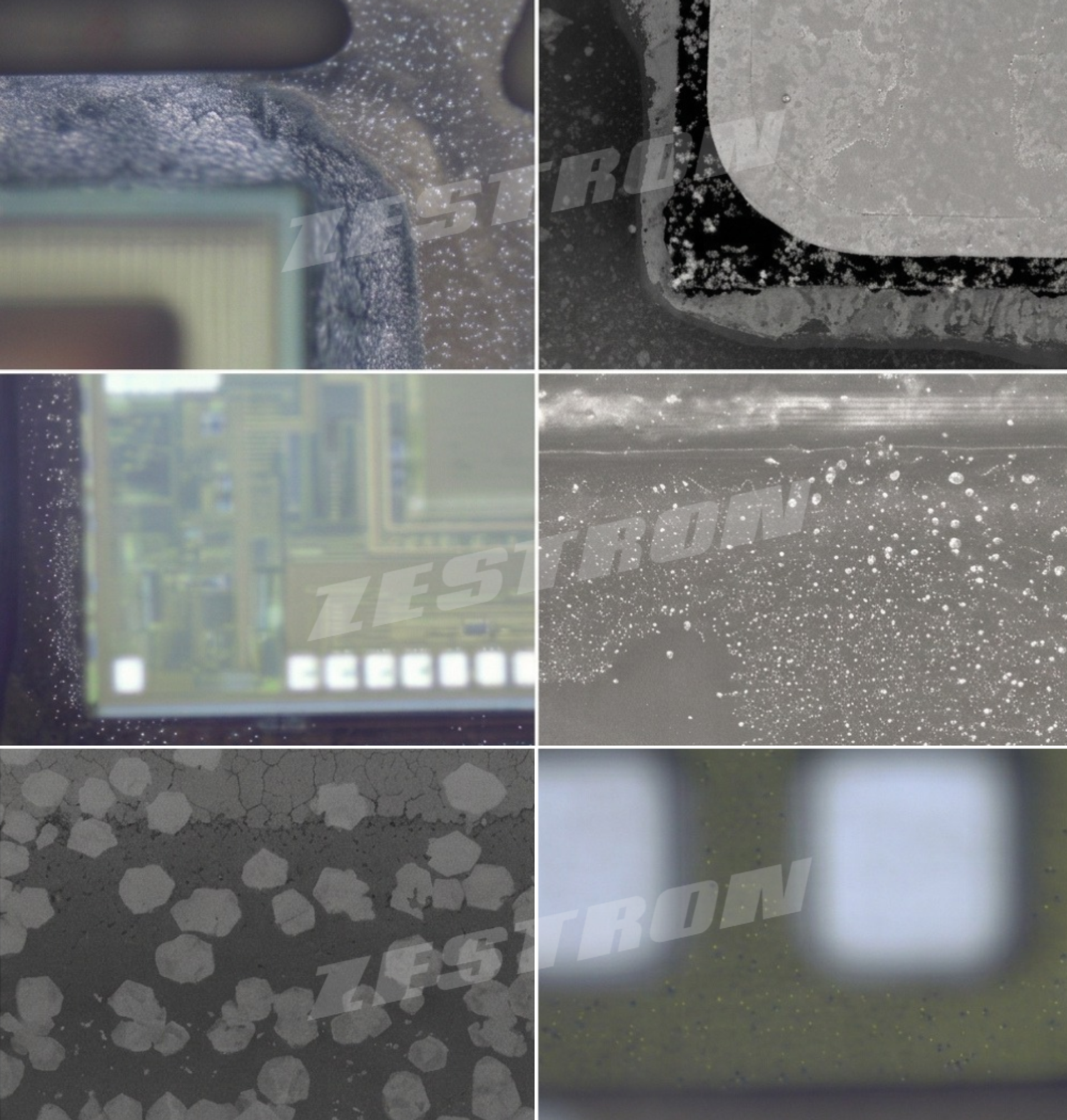

impact towards ReliabilityOverview of Failure Mechanism

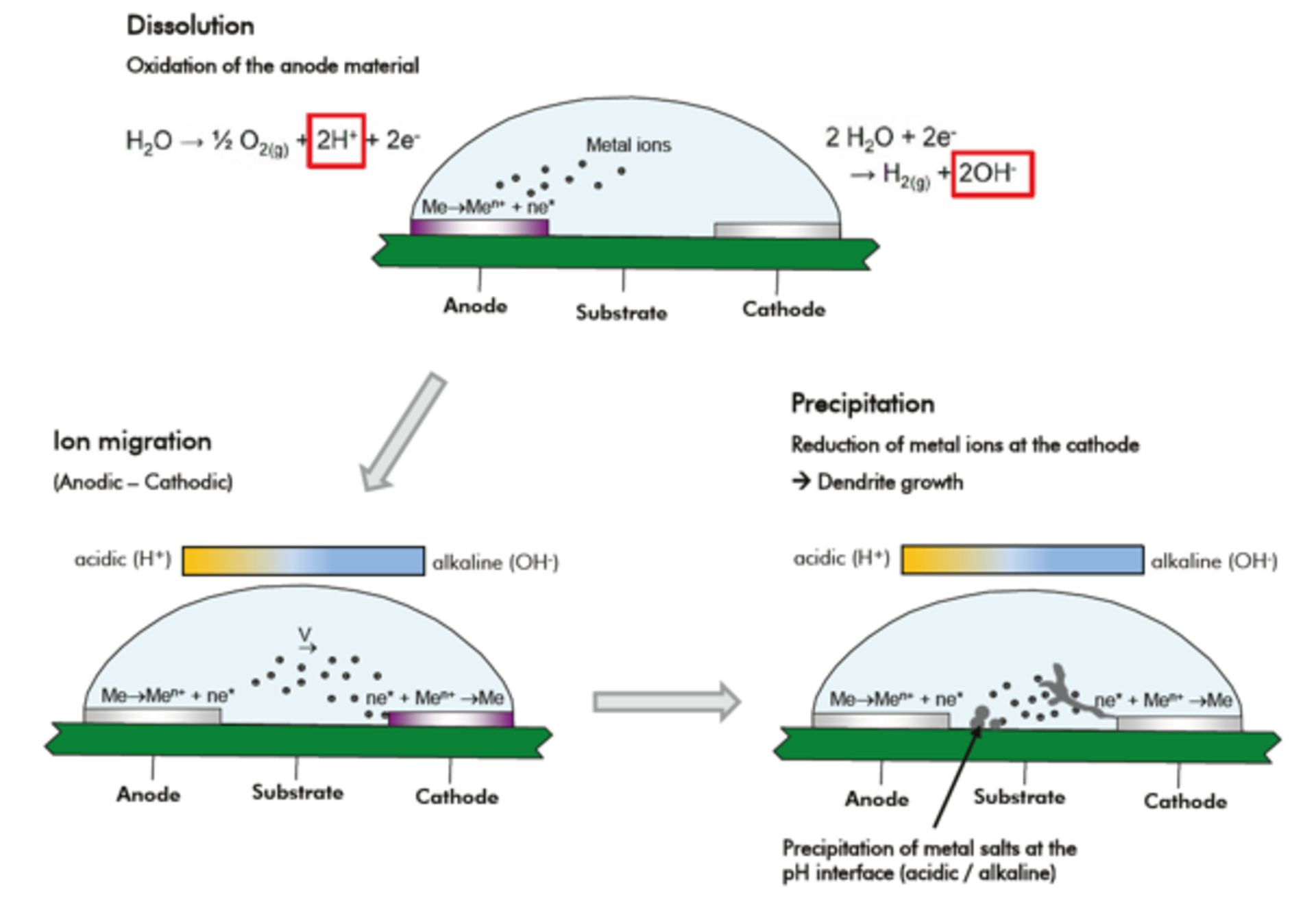

- Electrochemical Migration (ECM)
Short circuits due to dendrites appearing on the PCBA or assembly boards surfaces when moisture condenses. - Water Treeing
Combination of AMP and partial discharge in micro-gaps and pores. - Parasite Leakage Current
Formation due to moisture on and in polymeric protection systems or at temperatures typically above 120 degrees Celsius. - Anodic Migration Phenomenon (AMP)
The electrochemical migration (ECM) between layers after degradation of the layer bonding. - Insertion Loss
Interference of the insulation resistance at switching frequencies typically from 100kHz through moisture or particles. - Thermal Incident
Short circuits due to conductive particles.
Mistake 1: Assuming "No-Clean" Means No Cleaning
It is a common misconception that using "no-clean" flux leaves behind a completely residue-free board; in reality, these remaining residues can become both conductive and corrosive over time. This risk is especially heightened when printed circuit board assemblies (PCBAs) are exposed to elevated humidity, continuous voltage, or extended service lives.
Consequently, while IPC standards do not explicitly mandate defluxing for Class 1 PCBAs, advancing electronic technologies necessitate a reevaluation of the traditional belief that Class 1 assemblies never require cleaning.
Mistake 2 - Using Unqualified Cleaning Chemistry
Selecting an appropriate defluxing solution is critical, as general-purpose agents like deionised (DI) water or isopropyl alcohol (IPA) are often unsuitable for modern printed circuit board assemblies. Because different contaminants require distinct chemical approaches, off-the-shelf solvents frequently exhibit poor compatibility with advanced flux formulations and substrate materials, making thorough cleaning effectiveness validation essential.
Relying on improper cleaning processes introduces significant operational risks, including persistent residual contamination, stubborn white residue, and direct material damage. Over time, these factors severely compromise long-term product reliability and can even create major safety hazards, such as potential fire incidents.
Mistake 3: No Excessive Mechanical Energy
Attempting to overcome ineffective cleaning chemistry by ramping up mechanical force—such as increasing spray pressure, intensifying ultrasonic power, or extending cycle times—presents severe reliability risks.
Rather than properly dissolving contaminants, relying on aggressive physical force can lead to physical component damage, induce micro-cracks in sensitive solder joints, and aggravate material compatibility issues. Furthermore, excessive mechanical friction can shed lead (Pb) flakes from solder, spreading conductive debris across the board and creating a high risk of electrical shorts.
Mistake 4 - Poor Rinse or Validation Method
Thoroughly removing cleaning chemistry during the defluxing process is just as critical as the initial wash step. Inadequate rinsing leaves behind active chemical residues, leading directly to ionic contamination and triggering electrochemical migration that compromises circuit performance.
It is important to note that a visually clean circuit board does not guarantee ionic cleanliness; verifying true ionic purity requires dedicated analytical methods such as Resistivity of Solvent Extract (ROSE), Critical Cleanliness Control (C3), Ion Chromatography (IC), and Surface Insulation Resistance (SIR) testing.

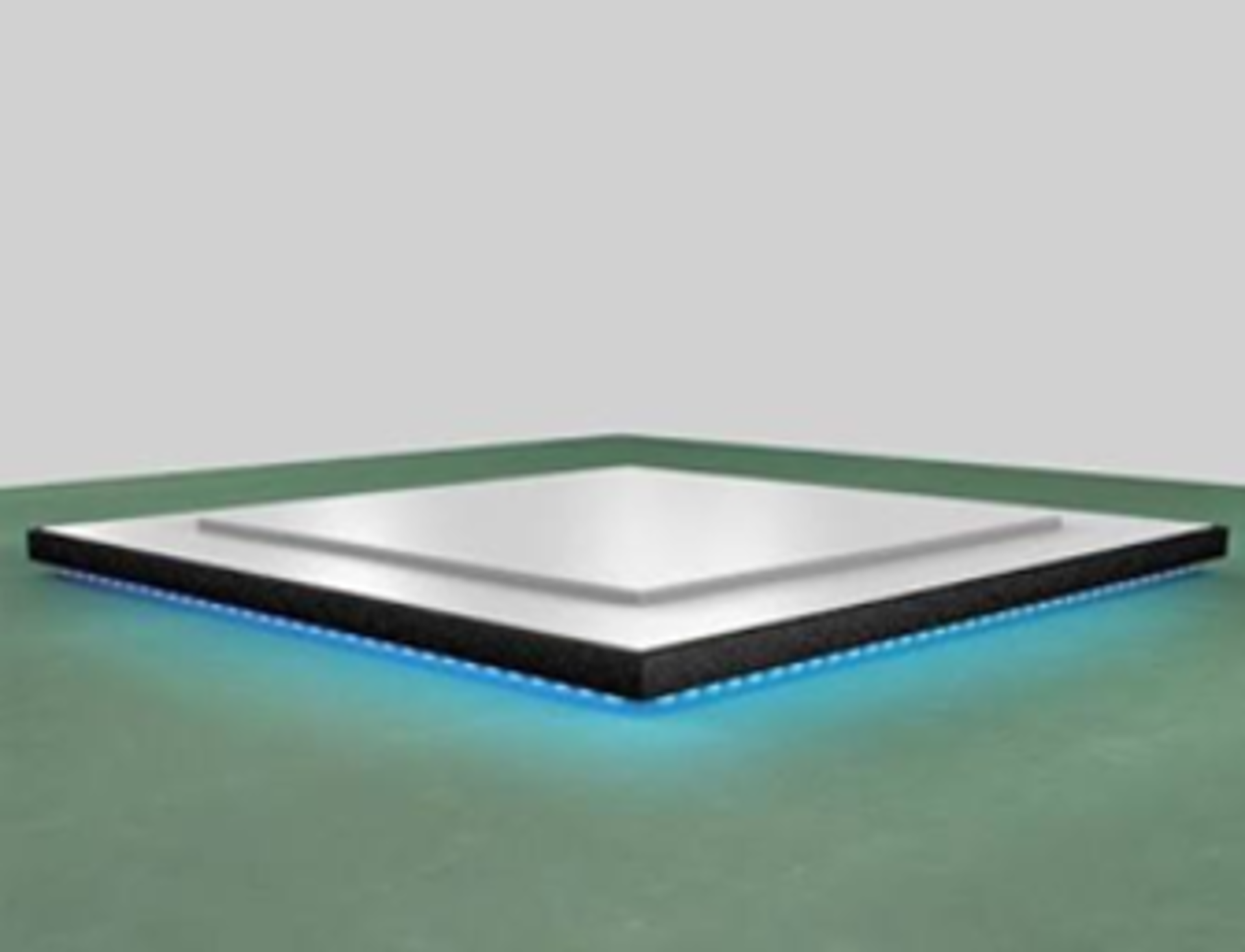

Furthermore, for low-standoff components like BGAs, QFNs, and LGAs, a comprehensive inspection underneath the component body is essential to ensure no hidden chemical entrapment remains.

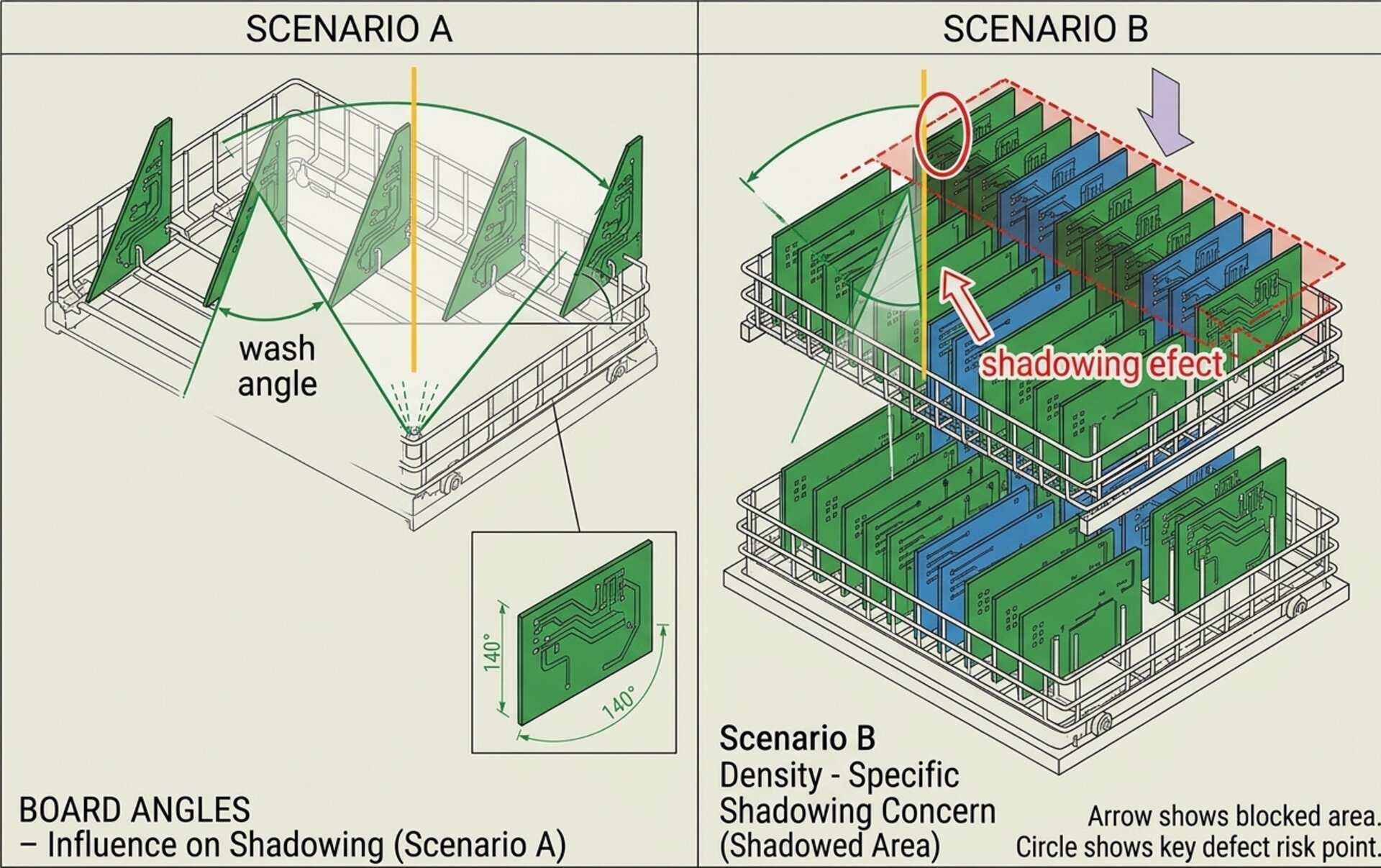

Mistake 5: Ignoring Part Orientations in the Cleaning Process
Ignoring part orientation during the cleaning process is a critical mistake that leads to severe reliability failures. Inadequate part orientation causes cleaning and rinsing agents to become trapped, creates shadowing effects, and results in PCB overloading—ultimately leading to insufficient cleaning, rinsing, and drying.
When liquid residues remain trapped due to poor positioning, the resulting moisture and chemical carryover cause localised corrosion, trigger dendrite growth, and cause a significant reduction in surface insulation resistance.

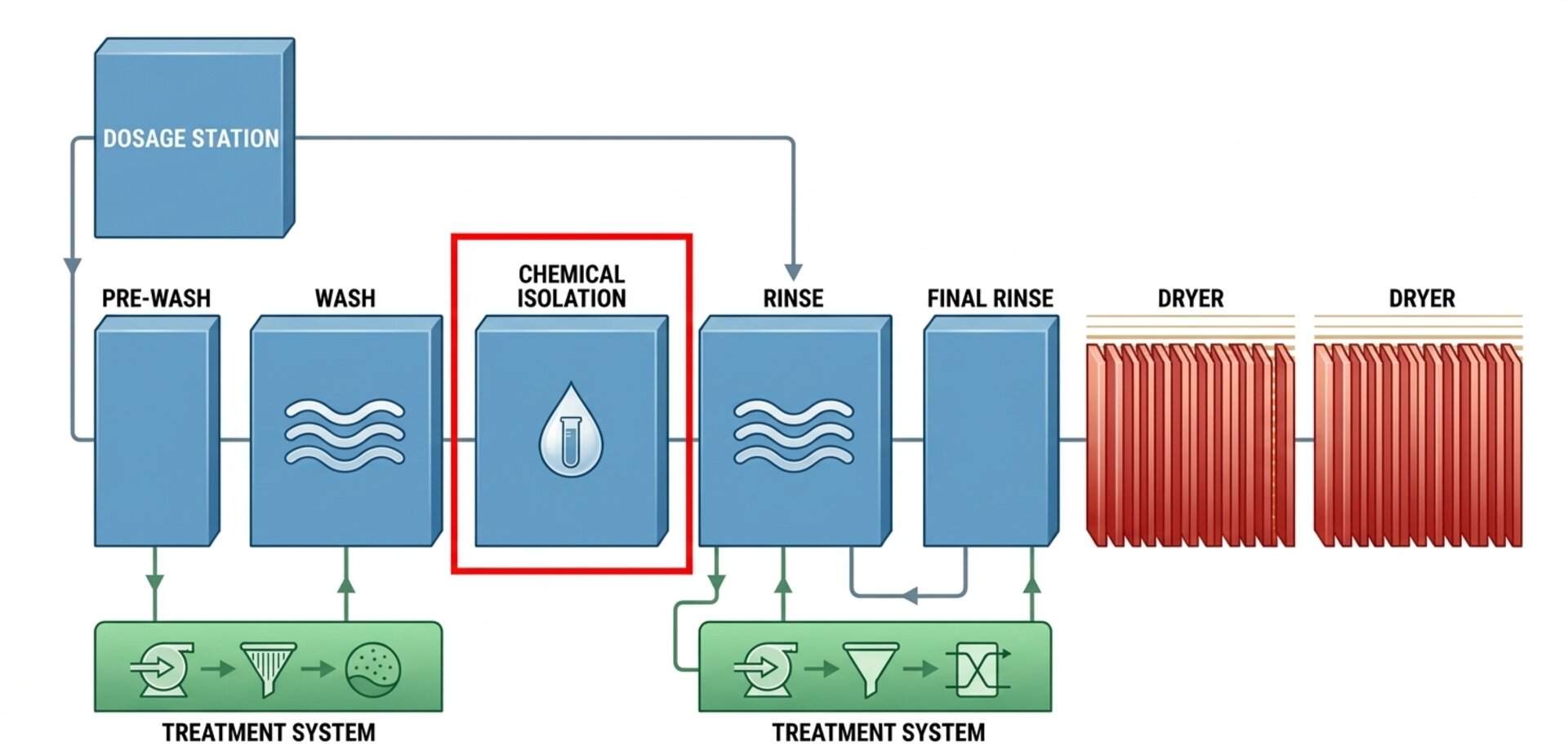

Mistake 6 - Poor Bath Control
A poorly controlled cleaning bath presents a major quality risk, as a heavily contaminated bath leads to residue redeposition, inconsistent cleaning results, and subtle process drift over time. Relying strictly on a fixed, time-based schedule for bath replacement is dangerous when PCBA loading fluctuates or when handling a high-mix production environment featuring varying board sizes and component densities.
To maintain tight process control, bath freshness should instead be monitored through quantitative laboratory testing—evaluating parameters such as cleaner concentration, total solid content or contamination levels, pH, density, and conductivity.
Mistake 7: Ignoring Equipment Maintenance
Cleaning equipment requires routine care, and neglect can lead to serious issues such as scale buildup, clogged spray nozzles, heater malfunctions, and complete pump failures.
To prevent these costly breakdowns, the best practice is to establish preventive maintenance schedules and inspect all equipment regularly.
Mistake 8 - Treating Cleaning as Cost Centre
Framing cleaning strictly as an operational cost centre is a critical misstep in electronics manufacturing. Attempting to minimise short-term cleaning expenses frequently backfires, leading to high-cost field failures, return merchandise authorisations (RMAs), regulatory compliance issues, and severe customer dissatisfaction.
Ultimately, effective defluxing and surface cleaning should be viewed not as overhead, but as an essential risk mitigation strategy that protects product reliability and long-term business value.
How to Prevent Cleaning Failures?
Preventing cleaning failures requires an integrated, end-to-end approach rather than relying on isolated checks. Operations must begin by selecting a cleaning chemistry specifically tailored to the target flux type and thoroughly validating its process effectiveness.
Once implemented, maintaining consistency hinges on actively controlling bath contamination, optimising rinse and drying parameters, and verifying final cleanliness through objective metrics—followed by mandatory process requalification whenever materials, equipment, or parameters change.
✓ Select chemistry for the specific flux
✓ Validate cleaning effectiveness
✓ Control bath contamination
✓ Optimize rinse & drying
✓ Verify cleanliness objectively
✓ Requalify process after changes
How to Confirm Cleanliness?
To confirm cleanliness and ensure long-term PCBA reliability, manufacturers rely on a combination of quantitative and qualitative validation tools:
-
Ionic Contamination (ROSE): Provides rapid, bulk ionic cleanliness monitoring for routine quality control.
-
Ion Chromatography (IC): Delivers precise identification and quantification of specific ionic species to detect potential corrosion risk.
-
Surface Insulation Resistance (SIR): Evaluates electrochemical migration risks under accelerated temperature and humidity conditions.
-
Visual Inspection: Detects gross physical residues, white residues, and surface anomalies under magnification.
-
FTIR Spectroscopy: Identifies organic residues and non-ionic contaminants left behind on board surfaces.
-
Inline Process Monitoring: Ensures continuous tracking of wash temperatures, concentrations, spray pressures, and bath quality.
When properly executed, defluxing is invisible—silently safeguarding the assembly without leaving a trace. When neglected, however, improper defluxing becomes a latent liability that no downstream test or repair can undo.
important note:Defluxing Done Right is Invisible.
